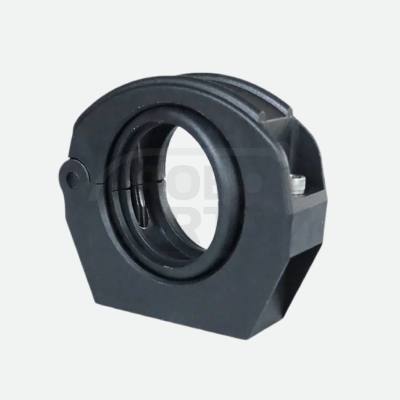

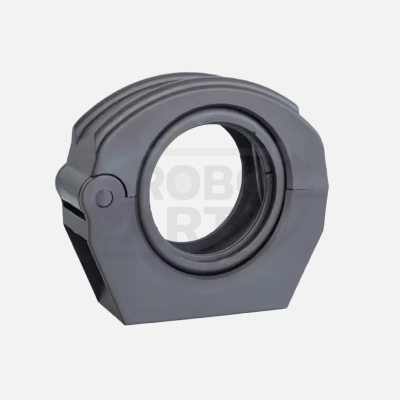

WLK-RGHQ-A Ball Hose Bracket

Ball hose bracket which can lock the robot hose and adjust the direction of movement at the same time

Categories : Robot Pipeline Package Systems

Product description

Product name : Ball Hose Bracket
Material : Modified Nylon
Temperature: -40°C～105°
Application : Robot, Automation Equipment
Certification : CE, ROHS

Feature:
- Ball hose bracket which can lock the robot hose and adjust the direction of movement at the same time, Moderately adjustable direction, friction resistance, strong tensile
- Compliant with CE and RoHS Standards: The product has been certified to meet CE and RoHS standards, ensuring that it is safe for use in a variety of environments

Model	Adapt Hose Size	Installation hole spacing
WLK-RGHQ-23A	23 x 28.2	30-33 (M8)
WLK-RGHQ-28A	28 x 34.2	30-33 (M8)
WLK-RGHQ-36A	36 x 42.3	30-44 (M8)
WLK-RGHQ-48A	48 x 54.0	30-44 9M8)
WLK-RGHQ-56A	56 x 67.2	30-56 (M8)
WLK-RGHQ-70A	70 x 80.0	30-56 (M8)
WLK-RGHQ-95A	95 x 106.0	51 (M8)
